Features

Best Companion for Education and Presentation
  • 4K Ultra High Definition images (8MP, 16:9 at 30 fps), up to 13 Megapixels
  • Dual-mode Autofocus lens (continuous, single time)
  • A3-size Still/Video Capture
  • Perfect for art teaching and exhibitions, two-page spreads, or large documents.
  • 2-in-1 Document Camera and Webcam: Suitable for use in home, school, and office.


13 Megapixel sensor captures stunning ultra high definition images

Your INS-2 document camera includes a 13 MP image sensor, capturing real-time 4K Ultra High Definition images (3840 x 2160, 16:9 at 30 fps), and up to 13 MP (3840 x 3104, 4:3 at 15 fps) ultra high definition video.



A3-size Still/Video Capture

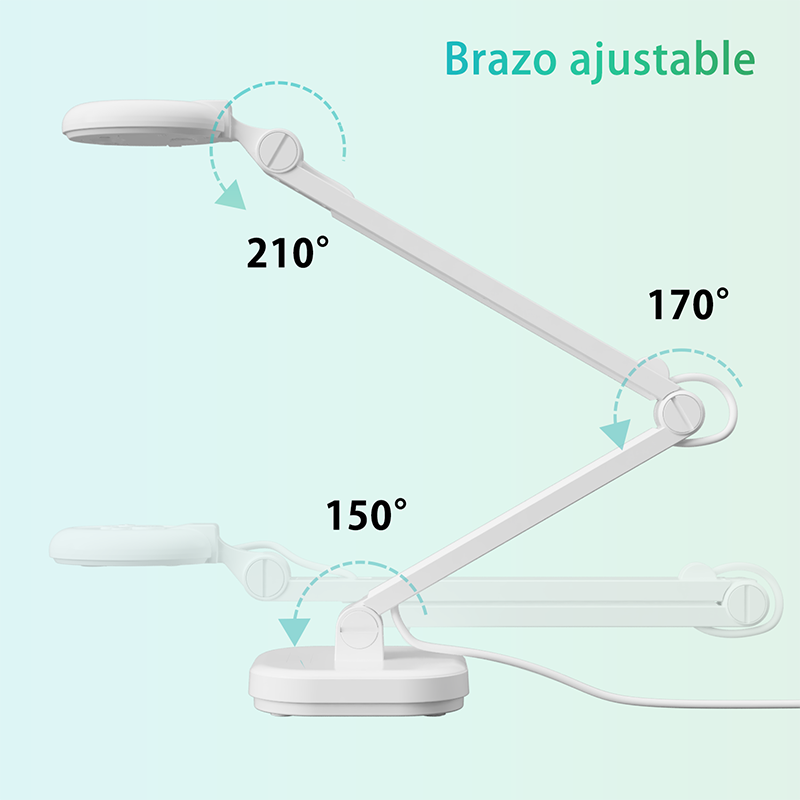

Its small size frees up desktop space and its multi-joint arm allows you to adjust the height to capture A3-size still images and video, perfect for art teaching and exhibitions, two-page spreads, or large documents. (Maximum field of view 31.5cmx 42cm)



Optical Character Recognition (OCR)
Compatible with INS-1 and INS-2

Extract editable text from scanned documents and books.
(The above picture is only schematic.)



Keystone Correction
Compatible with INS-1, INS-2, and INS-3

Select the area to be scanned and correct image distortion.
(The above picture is only schematic.)

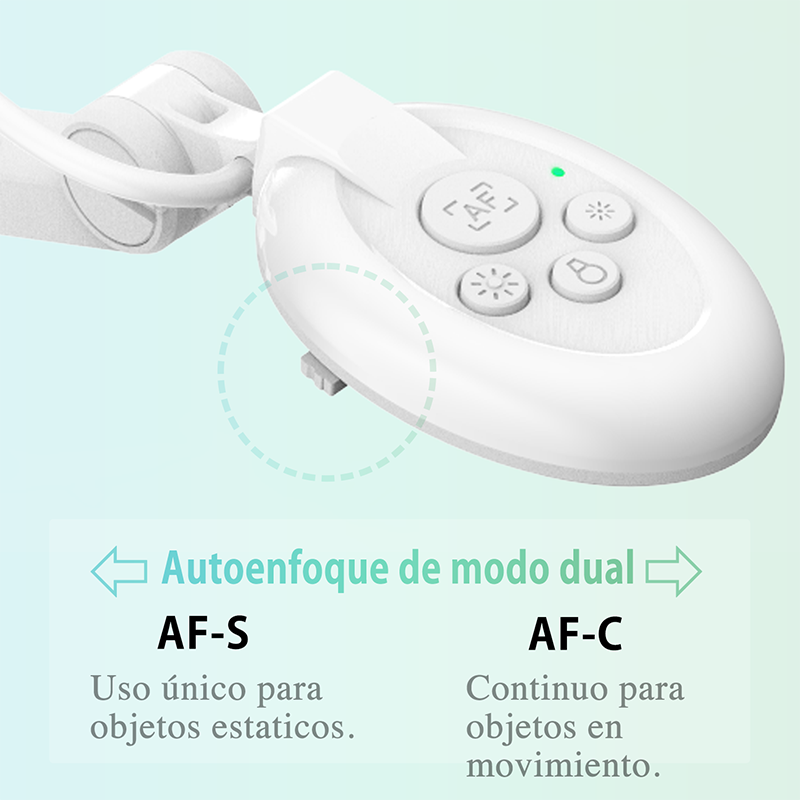

Dual-mode Autofocus lens (continuous, single time)

Set the focus mode to AF-C (AF Continuous) to film moving objects or AF-S (AF Single) for static objects.

Excellent for Classroom Teaching, Distance Education and Web Conferencing

In addition to classroom teaching, you can also use your INS-2 as a PC camera/microphone for distance education/web conferencing with no installation required. It works seamlessly with webinar software applications such as Zoom, Google Meet, Microsoft Teams, Cisco Webex, GoToMeeting, Insig, and many others. How to use?



2-in-1 Document Camera and Webcam design with major function buttons on device head for easy access

INS-2 is suitable for use in home, school, and office. Press these two buttons simultaneously to flip the real-time image and capture your face and textbook/objects at will.





Our advanced software helps you make Classroom Teaching, Distance Education and Web Conferencing an adventure

Our Documate software provides advanced features to enhance classroom or online instruction, such as image rotation, digital zoom, hue adjustment, image annotation, video recording, and snapshots. Documate is fully compatible with Windows 7/8/10, Mac 10.11 or higher, Chrome 38.0 or higher and integrates seamlessly with all mainstream webinar applications. How to use?

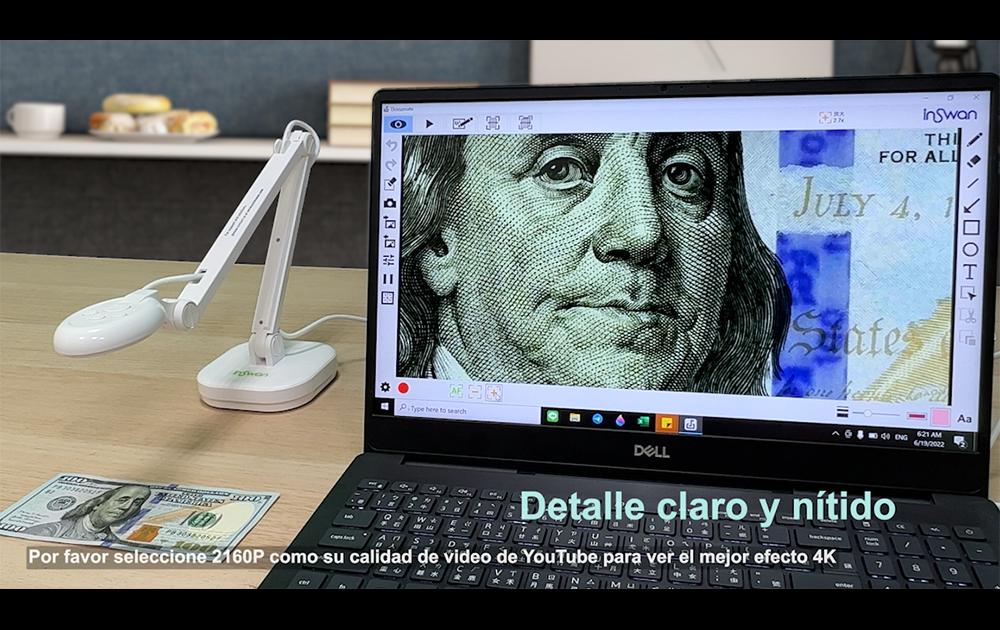

Amazing Image Quality, view small object to 4K screen with no loss of clarity.

420 mm x 315 mm capture area

10 cm close up

10 cm close up with digital zoom

Suitable under All Lighting Conditions

The supplemental LED light and anti-glare sheet that comes with your INS-2 overcome extreme lighting conditions, allows you to use the document camera anytime anywhere.


Connection to Your Microscope

You can even connect your INS-2 to a Ø28mm / Ø31mm / Ø33mm / Ø34mm eyepiece microscope to output microscopic objects to a big screen.


Live Annotation and Video Recording

Live annotate any 2D or 3D objects during the teaching (online teaching) session and web-conference via Documate application and video record important segments of your presentation in real-time for future use.




Built-in Microphone


Compatible with Windows, Mac and Chrome OS

Your INS-2 must work with a computer. It supports Windows 7/8/10, Mac 10.11 or higher, and Chromebook 38.0 or higher.

Package Content
Free Software Update and Tutorials

  • Click here to get the latest Documate software update, user’s manuals, and instructional videos.


  • Designed and made in Taiwan.



    Set Up

    Appearance

    Specifications

    Workspace 420 mm x 315 mm (16.53 inches x 12.40 inches)
    Auto Focus Yes ( 10 cm to infinity )
    Digital Zoom 8X
    Illumination
    Supplement
    Yes ( Built-in LED Light )
    Sensor 13 Mega pixel color CMOS sensor (effective 3840 x 3104 pixels)
    Still Images &
    Video Streaming
  • 3840 x 3140 / up to 15 fps
  • 3840 x 2160 / up to 30 fps
  • 3264 x 2448 / up to 30 fps
  • 2592 x 1944 / up to 30 fps
  • 2048 x 1536 / up to 30 fps
  • 1600 x 1200 / up to 30 fps
  • 1920 x 1080 / up to 60 fps
  • 1280 x 720 / up to 30 fps
  • 1024 x 768 / up to 30 fps
  • Adjustable Arm Yes
    PC Camera Yes ( Plug and Play )
    IO Connectors USB 2.0 port (Type A)
    Reminder: USB type C users should prepare a C-to-A adapter (male C to female A)
    Power Source USB 5.V Power Consumption
    Hot Keys
  • Auto Focus Switch (AF-Single / AF-Continuous)
  • Auto Focus
  • LED Control
  • Brightness +
  • Brightness -
  • Bundled Software Documate
    Package Content
  • Document Camera x 1
  • Quick Guide x1
  • Anti-glare Sheet x1
  • Microscope Adapters
  • System
    Requirements

    Minimum Requirements

  • Intel® Core™ i3 CPU 1.1 GHz or higher
  • 8 GB RAM and more
  • 256MB of dedicated video memory (For live streaming up to 1920 x 1080)
  • USB 2.0 port or higher

  • Recommended Requirements

  • Intel® Core™ i5 CPU 3.2 GHz or higher
  • 8 GB RAM and more
  • 256MB of dedicated video memory (For live streaming up to 1920 x 1080, and video recording of 1920 x 1080)
  • 1 GB of dedicated video memory (For live streaming up to 3840 x 2160, and video recording of 1920 x 1080)
  • USB 2.0 port or higher

  • Simultaneous 4K live streaming and recording video requires considerably greater resources. We provide video recording up to 1080P (16:9) and 1440P (4:3) for Windows & Mac, and up to 720P for Chromebook to prevent image lag.


    Supported Operating System

  • Windows OS 7 / 8 / 10
  • Mac OS 10.11 or higher
  • Chrome OS 38.0 or higher

  • Download

    The INS-2 works with Documate application software and provides comprehensive capture and display functions for the classroom and/or the conference room. Click here to download the application.
